Grill Fans
Compact Ventilation. Consistent Airflow.

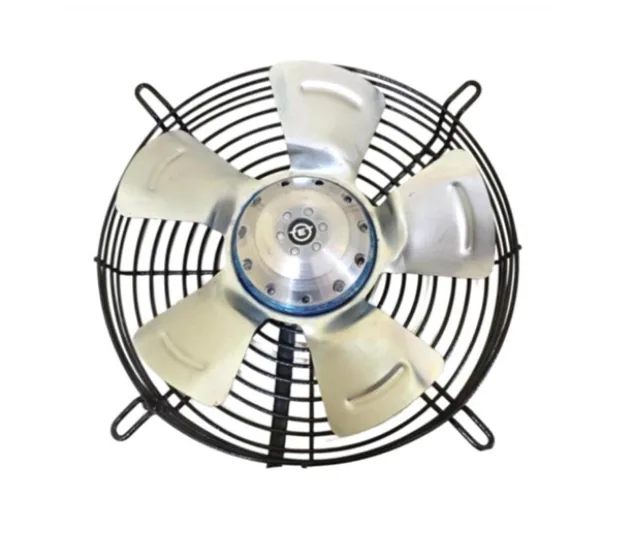

Single phase Straight Grill Fan (Blower)
About This Product
The Straight Grill Fan Forward is a single-phase industrial fan designed to deliver reliable airflow for ventilation, cooling, and air circulation. Its compact build, forward-curved blades, and sturdy straight grill protective guard ensure efficient performance, safety, and durability in commercial and industrial environments.
Feature Highlights
Single-phase AC motor (230 V)
Forward-curved blade design for high airflow
Rugged straight grill protective guard
Compact and easy to install
Low maintenance and energy efficient
Available in multiple blade sizes (200mm, 250mm, and 300mm)
Applications
- Industrial ventilation systems
- HVAC equipment
- Equipment and machine cooling
- Control panels and electrical enclosures
- Air handling units and exhaust systems
- Commercial appliances and workshops
| MODEL | Blade Size | Voltage | Speed (RPM) |
Current | Power | Capacitor | Frequency | Weight | Air Flow Direction |
|---|---|---|---|---|---|---|---|---|---|
| TET-1PH-4P-AF300B4 | 300mm | 230V | 1400 | 0.45 A | 105 W | 3.15 µF | 50 Hz | 2.300kg | Blower |
| TET-1PH-4P-AF250B4 | 250mm | 230V | 1450 | 0.30 A | 70 W | 3.15 µF | 50 Hz | 2.100kg | Blower |
| TET-1PH-4P-AF200B4 | 200mm | 230V | 1430 | 0.30 A | 60 W | 2 µF | 50 Hz | 1.800kg | Blower |
Three Phase Centrifugal Blower
About This Product
The Straight Grill Fan Reverse is a single-phase industrial fan designed for reverse airflow applications, ventilation, and cooling. It features a rugged straight grill guard and a dependable single-phase AC motor built for continuous and efficient performance.
Feature Highlights
Single-phase AC motor (230 V)
Reverse blade configuration designed for specific airflow direction
Rugged straight grill protective guard
Compact build and easy to install
Low maintenance and reliable operation
Available in multiple blade sizes (200mm, 250mm, and 300mm)
Applications
- Industrial ventilation systems
- HVAC equipment
- Exhaust and reverse airflow systems
- Machine and equipment cooling
- Control panels and electrical enclosures
- Air handling units and commercial workshops
| MODEL | Blade Size | Voltage | Speed (RPM) |
Current | Power | Capacitor | Frequency | Weight | Air Flow Direction |
|---|---|---|---|---|---|---|---|---|---|
| TET-1PH-4P-AF300S4 | 300mm | 230V | 1400 | 0.45 A | 105 W | 3.15 µF | 50 Hz | 2.300kg | Suction |
| TET-1PH-4P-AF250S4 | 250mm | 230V | 1450 | 0.30 A | 70 W | 3.15 µF | 50 Hz | 2.100kg | Suction |
| TET-1PH-2P-AF200S4 | 200mm | 230V | 1430 | 0.30 A | 60 W | 2 µF | 50 Hz | 1.800kg | Suction |

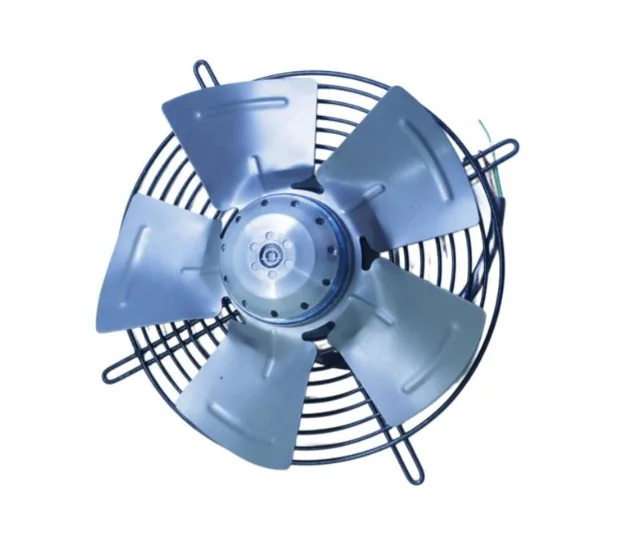

Single Phase Basket Grill Fan (Blower)
About This Product
The Turbo Electric Technology Single Phase Basket Grill Fan (Blower) is a high-performance industrial ventilation fan designed to deliver powerful airflow for cooling, ventilation, and air circulation. It features a durable metal blade assembly with a protective basket grill for enhanced safety, making it ideal for continuous operation in industrial and commercial environments. The fan provides efficient performance with low noise and minimal maintenance.
Feature Highlights
Single-phase AC motor (230 V)
High airflow with low noise
Protective metal basket grill for safety
Durable metal blades and sturdy construction
Energy-efficient performance
Easy installation and maintenance
Compact and lightweight design
Continuous-duty operation
Applications
- Industrial ventilation systems
- Factories and workshops
- Warehouses and storage facilities
- Commercial kitchens
- Machine and equipment cooling
- HVAC ventilation systems
- Greenhouses and poultry farms
- Exhaust and fresh air circulation
- Manufacturing plants
- Commercial and residential ventilation applications
| MODEL | Blade Size | Voltage | Speed (RPM) |
Current | Power | Capacitor | Frequency | Weight | Air Flow Direction |
|---|---|---|---|---|---|---|---|---|---|
| TET-1PH-4P-AF300B4 | 300mm | 230V | 1400 | 0.45 A | 105 W | 3.15 µF | 50 Hz | 2.500kg | Blower |
| TET-1PH-4P-AF250B4 | 250mm | 230V | 1450 | 0.30 A | 70 W | 3.15 µF | 50 Hz | 2.300kg | Blower |
| TET-1PH-2P-AF200B4 | 200mm | 230V | 1430 | 0.30 A | 60 W | 2 µF | 50 Hz | 2.100kg | Blower |

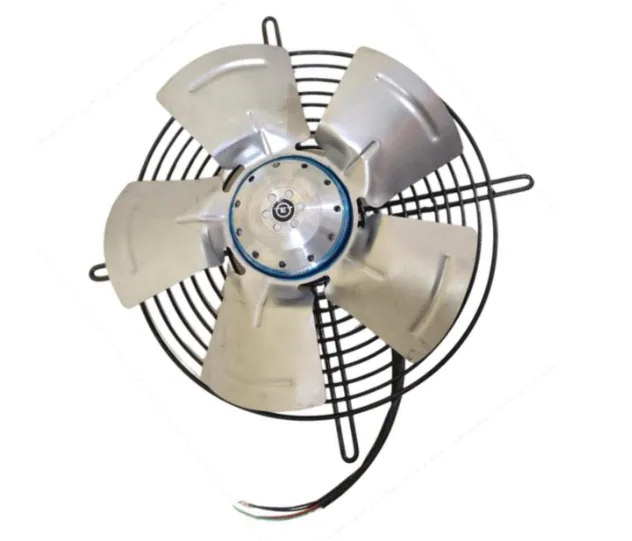

Single Phase Round Casing Fan
About This Product
The Turbo Electric Technology Single Phase Basket Grill Fan (Suction) is a high-performance industrial ventilation fan designed for efficient air suction, exhaust, and air circulation. Equipped with a durable metal blade assembly and a protective basket grill, it ensures safe, reliable, and continuous operation. Its energy-efficient single-phase motor delivers high airflow with low noise, making it suitable for industrial, commercial, and residential ventilation applications.
Feature Highlights
Single-phase AC motor (230 V)
High air suction performance
Low noise and vibration
Protective metal basket grill for enhanced safety
Durable metal blades with rugged construction
Energy-efficient operation
Easy installation and low maintenance
Continuous-duty performance
Applications
- Industrial ventilation systems
- Factories and workshops
- Warehouses and storage facilities
- Commercial kitchens and exhaust systems
- HVAC air circulation and ventilation
- Machine and equipment cooling
- Smoke, heat, and fume extraction
- Agricultural buildings and poultry farms
- Parking basements and utility rooms
- Commercial and residential ventilation applications
| MODEL | Blade Size | Voltage | Speed (RPM) |
Current | Power | Capacitor | Frequency | Weight | Air Flow Direction |
|---|---|---|---|---|---|---|---|---|---|
| TET-1PH-4P-AF300S4 | 300mm | 230V | 1400 | 0.45 A | 105 W | 3.15 µF | 50 Hz | 2.500kg | Suction |
| TET-1PH-4P-AF250S4 | 250mm | 230V | 1450 | 0.30 A | 70 W | 3.15 µF | 50 Hz | 2.300kg | Suction |
| TET-1PH-2P-AF200S4 | 200mm | 230V | 1430 | 0.30 A | 60 W | 2 µF | 50 Hz | 2.100kg | Suction |
