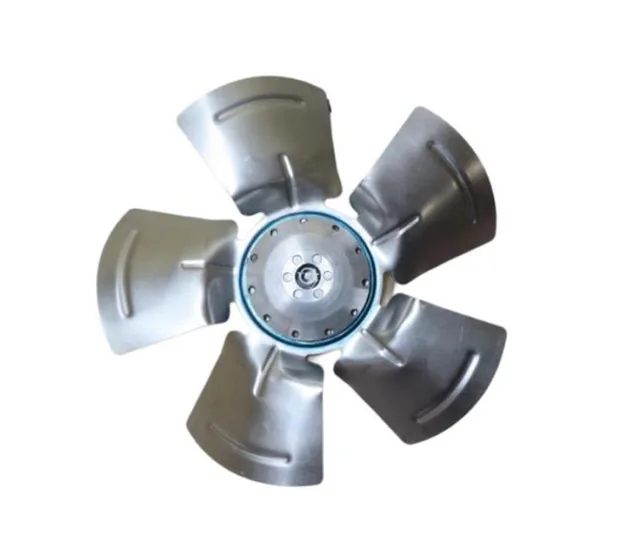

Three Phase Axial Fan (Blower)
About This Product
The Turbo Electric Technology Three Phase Axial Fan (Blower) is a high-performance industrial fan designed to deliver powerful airflow for ventilation, cooling, and air circulation. Equipped with a robust three-phase motor and dynamically balanced metal blades, it ensures reliable operation, low vibration, and long service life. It is ideal for continuous-duty industrial and commercial applications requiring high airflow.
Feature Highlights
Three-phase AC motor (415 V)
High airflow with low noise
Durable metal impeller blades
Energy-efficient performance
Compact and easy to install
Low maintenance
Dynamically balanced for smooth operation
Continuous-duty industrial performance
Applications
- Industrial ventilation systems
- HVAC equipment
- Factories and manufacturing plants
- Warehouses and workshops
- Machine and equipment cooling
- Commercial kitchens
- Air handling units
- Paint booths
- Dust extraction and ventilation systems
- General industrial and commercial air circulation
| MODEL | Blade Size | Voltage | Speed (RPM) |
Current | Power | Frequency | Air Flow Direction | Weight |
|---|---|---|---|---|---|---|---|---|
| TET-3PH-4P-AF300B4 | 300mm | 415V | 1400 | 0.35 A | 140 W | 50 Hz | Blower | 2.100kg |
| TET-3PH-4P-AF250B4 | 250mm | 415V | 1475 | 0.25 A | 80 W | 50 Hz | Blower | 1.900kg |
| TET-2P-3PH-AF-200B2 | 200mm | 415V | 2750 | 0.25 A | 80 W | 50 Hz | Blower | 1.250kg |

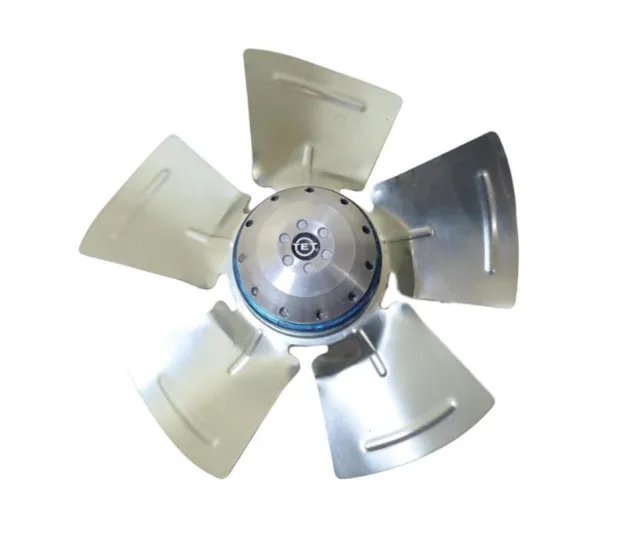

Three Phase Axial Fan (Suction)
About This Product
The Turbo Electric Technology Three Phase Axial Fan (Suction) is a high-performance industrial fan designed for efficient air suction, ventilation, exhaust, and cooling applications. Powered by a reliable three-phase AC motor and equipped with dynamically balanced metal blades, it delivers high suction performance with low noise and vibration. Its rugged construction ensures dependable operation and long service life in demanding industrial environments.
Feature Highlights
Three-phase AC motor (415 V)
High air suction performance
Low noise and vibration
Durable metal impeller blades
Energy-efficient operation
Compact and easy to install
Low maintenance
Continuous-duty industrial performance
Applications
- Industrial ventilation systems
- HVAC equipment
- Dust collection and extraction systems
- Machine and equipment cooling
- Control panels and electrical enclosures
- Commercial kitchens and exhaust systems
- Air handling units
- Factories, workshops, and warehouses
- Manufacturing plants
- General industrial and commercial air suction and ventilation applications
| MODEL | Blade Size | Voltage | Speed (RPM) |
Current | Power | Frequency | Air Flow Direction | Weight |
|---|---|---|---|---|---|---|---|---|
| TET-3PH-4P-AF300S4 | 300mm | 415V | 1400 | 0.35 A | 140 W | 50 Hz | Suction | 2.100kg |
| TET-3PH-4P-AF250S4 | 250mm | 415V | 1475 | 0.25 A | 80 W | 50 Hz | Suction | 1.900kg |
| TET-2P-3PH-AF-200S2 | 200mm | 415V | 2750 | 0.25 A | 80 W | 50 Hz | Suction | 1.250kg |
