Axial Fans
High-Volume Airflow for Efficient Ventilation.
Single Phase Axial Fan (Blower)
About This Product
The Turbo Electric Technology Single Phase Axial Fan is a high-performance industrial fan designed to deliver powerful airflow for direct ventilation, cooling, exhaust, and air circulation. Featuring an external rotor motor design and robust metal blades, it ensures reliable operation, high efficiency, and a long service life. It is suitable for continuous-duty industrial and commercial ventilation applications.
Feature Highlights
Single-phase AC motor (230 V)
High-performance axial blade design for direct airflow
High airflow with low noise and smooth operation
Rugged and durable metal construction
Compact design for easy and flexible installation
Low maintenance and high reliability
Energy-efficient performance
Designed for continuous-duty operation
Applications
- Industrial ventilation and exhaust systems
- HVAC equipment and condenser units
- Machine and panel cooling
- Agricultural and greenhouse ventilation
- Transformer cooling and electrical enclosures
- Commercial kitchens and exhaust systems
- Factories, workshops, warehouses, and storage units
| MODEL | Blade Size | Voltage | Speed (RPM) |
Current | Power | Capacitor | Frequency | Weight | Air Flow Direction |
|---|---|---|---|---|---|---|---|---|---|
| TET-1PH-4P-AF300B4 | 300mm | 230V | 1400 | 0.45 A | 105 W | 3.15 µF | 50 Hz | 2.100kg | Blower |
| TET-1PH-4P-AF250B4 | 250mm | 230V | 1450 | 0.30 A | 70 W | 3.15 µF | 50 Hz | 1.900kg | Blower |
| TET-1PH-2P-AF200B2 | 200mm | 230V | 2700 | 0.35 A | 60 W | 2 µF | 50 Hz | 1.700kg | Blower |
Single Phase Axial Fan (Suction)
About This Product
The Turbo Electric Technology Single Phase Axial Fan (Suction) is a high-performance ventilation fan designed to provide efficient air suction and exhaust for industrial, commercial, and residential applications. It features a durable metal blade assembly, low-noise operation, and a reliable single-phase motor for continuous performance. The fan is ideal for improving air circulation, removing heat, smoke, dust, and fumes, and maintaining a healthy working environment.
Feature Highlights
Single-phase AC motor (230 V)
High air suction efficiency
Low noise and vibration
Durable metal blades
Compact and lightweight design
Energy-efficient operation
Easy installation and maintenance
Continuous-duty performance
Applications
- Industrial ventilation systems
- Workshops and factories
- Warehouses and storage areas
- Commercial kitchens
- Exhaust systems for smoke and fumes
- Machine and equipment cooling
- HVAC ventilation systems
- Parking garages and basements
- Agricultural and poultry farms
- Residential and commercial ventilation systems
| MODEL | Blade Size | Voltage | Speed (RPM) |
Current | Power | Capacitor | Frequency | Weight | Air Flow Direction |
|---|---|---|---|---|---|---|---|---|---|
| TET-1PH-4P-AF300S4 | 300mm | 230V | 1400 | 0.45 A | 105 W | 3.15 µF | 50 Hz | 2.100kg | Suction |
| TET-1PH-4P-AF250S4 | 250mm | 230V | 1450 | 0.30 A | 70 W | 3.15 µF | 50 Hz | 1.900kg | Suction |
| TET-1PH-2P-AF200S2 | 200mm | 230V | 2700 | 0.35 A | 60 W | 2 µF | 50 Hz | 1.700kg | Suction |

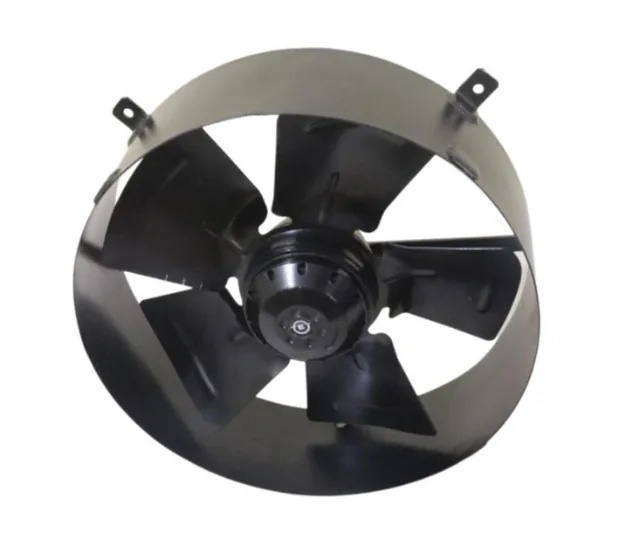

Single Phase Round Casing Fan
About This Product
The Turbo Electric Technology Single Phase Round Casing Fan is a high-performance axial ventilation fan designed for efficient air circulation, cooling, and exhaust applications. Its robust round metal casing provides improved airflow direction, enhanced protection, and reliable performance. Powered by a durable single-phase motor, it delivers high airflow with low noise, making it ideal for continuous industrial and commercial use.
Feature Highlights
Single-phase AC motor (230 V)
High airflow with low noise
Sturdy round metal casing
Durable metal impeller blades
Energy-efficient performance
Easy installation and low maintenance
Compact and rugged construction
Continuous-duty operation
Applications
- Industrial ventilation systems
- HVAC and air handling units
- Factories and workshops
- Warehouses and storage facilities
- Machine and equipment cooling
- Commercial kitchens and exhaust systems
- Control panels and electrical enclosures
- Greenhouses and agricultural buildings
- Manufacturing plants
- General industrial and commercial air circulation
| MODEL | Blade Size | Voltage | Speed (RPM) |
Current | Power | Capacitor | Frequency | Weight | Air Flow Direction |
|---|---|---|---|---|---|---|---|---|---|
| TET-1PH-4P-AF300B4 | 300mm | 230V | 1400 | 0.45 A | 105 W | 3.15 µF | 50 Hz | 3.750kg | Blower |
| TET-1PH-4P-AF250B4 | 250mm | 230V | 1450 | 0.30 A | 70 W | 3.15 µF | 50 Hz | 3.500kg | Blower |
| TET-1PH-2P-AF200B4 | 200mm | 230V | 1430 | 0.30 A | 60 W | 2 µF | 50 Hz | 3.00kg | Blower |
